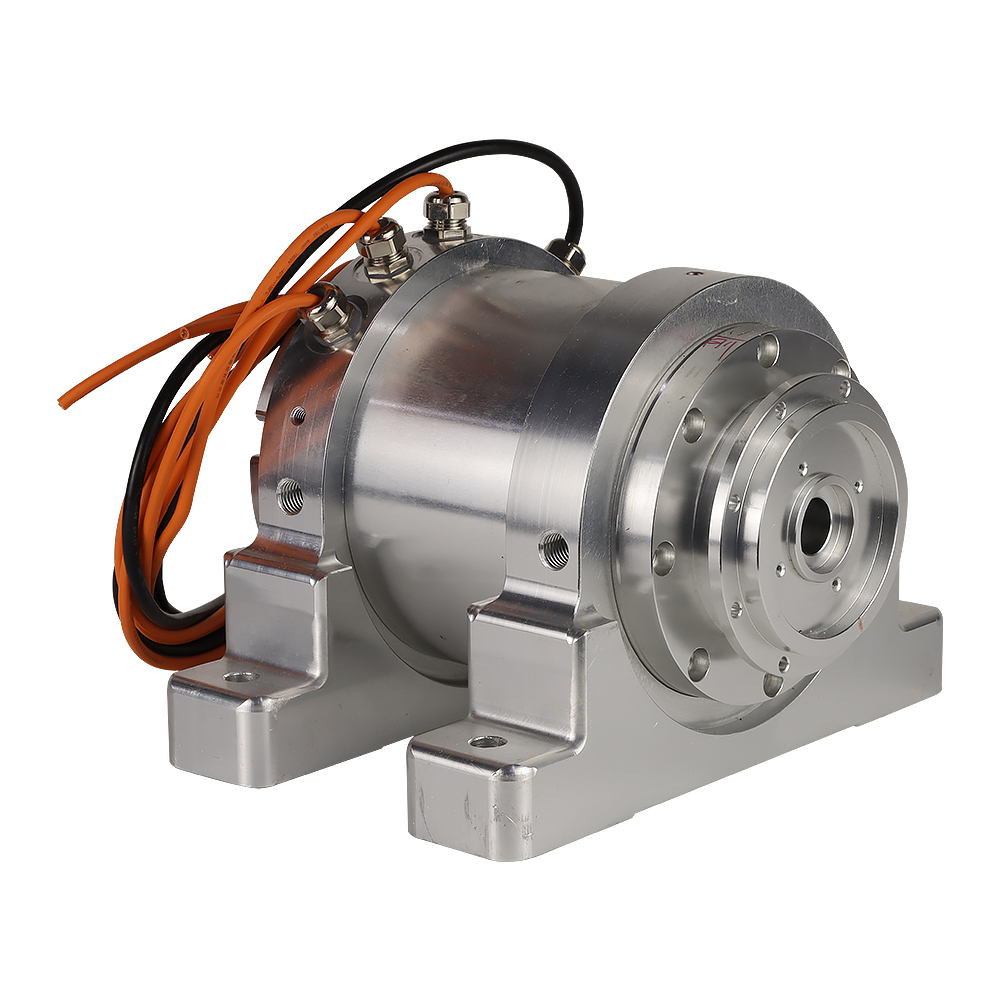

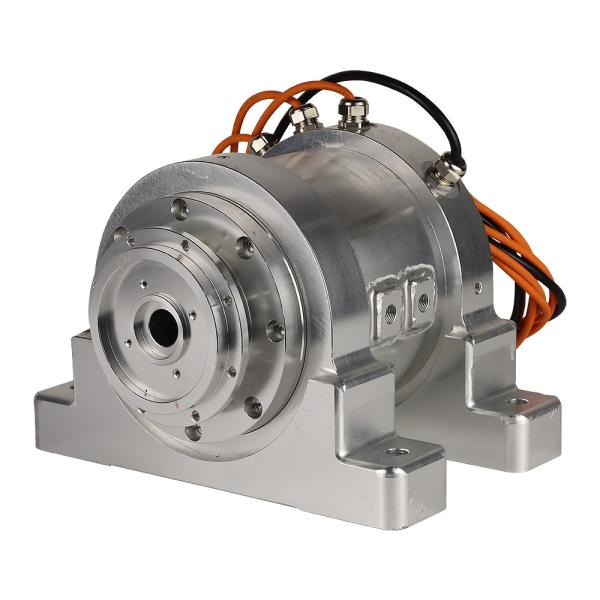

Water cooled 18KW 75000RPM High Speed Permanent Magnet Motor for Supercharger

Specifications

Main Materials

1. Casing/Housing: Super strong Alloy shell (Stainless steel/alloy optional)
2. 220°C grade corona resistant varnished wire
3. NHN Insulation paper
4. High grade NdFeB permanent magnet

Application

1) Compressor or supercharger of hydrogen fuel cell vehicles

2) Turbine, turbofan, turbocharger

Packing

1. Wooden/paper carton optional (price will be differenert)
2. Most of our motors are customized, please confirm the carton size with our sales when all your requirement are confirmed.

Shipping direction

1. Sample order: our stock cargons L/T 1~3 days, customized 45~60 days
2. Mass production order: 15~25 days based on the quantity
3. By air: we normally take DHL/FEDEX/UPS/TNT or other door to door service
4. By sea: LCL/FCL are both ok.

FAQ

1. Can performanent magnet synchronous motor be used as generator?
Yes. Our motors can work as a generator.

2. Why can not directly use three phase ac supply voltage to start permanent magnet synchronous motor?
Becuase rotor is with big innertia, and magetic files spins so fast that static rotor has no way to spin with magetic filed.

3. Any special technical request on this motor's VFD driver? And Do you have such driver?
Permanent magnet synchronous motor's driver should be vector control VFD with special inner software, such as Siemens 6SE70 series, Yakawa CR5 series, ABB ACS800 series, Mitsubishi A740 series, B&R P84 and P74 series, etc.. Yes, our MH300 series VFD matches with this motor.

4. Is there any protective measures to defend permanent magnet rotor from failure?
Yes, each permanent magnet rotor passes corrossion resistance, consistency, high temperature demagnetization test, linear demagnetization test, etc. Its demagnetization index is within 2%. But if working environment is serious oxiditive corrosion, kindly advise for higher protection level.

5. Where is this permanent magnet synchronous motor normally used to?
This permanent magnet synchronous motor is normally used to variable frequency speed situation.

MC Motor Technology Co., Ltd is a leading high-tech enterprises which focuses on the design, research and manufacture of the new generation high speed permanent magnet motors, which are widely used in industrial, agriculture, mining, building service, water-treatment, automotive and other new emerging industries.

In the past few years, MC Motor leads a series of technological innovations, and made remarkable achievements, includes:

1. Obtains worldwide reserved intellectual property rights about approximately one hundred core technologies, most of which have been successfully applied to our motors
2. Achieved more than 50 new designed PM high speed motors from 8KW to 200KW, 5000rpm to 24000rpm, which have much higher efficiency, power density, reliability and smaller size & lighter weight than other similar PM motor.
3. Forms mature production lines and professional & excellent teams of management, R&D, marketing and sales, obtains very good reputation from our clients world-widely.

MC MOTOR has international standard QC management system to make sure every production process strictly complies with ISO9001-2015.

MC MOTOR not only provides motors, but also develop customized solutions which can perfectly work with other facilities based on our clients’ requirements. Call or email us with your requirements, we would be honor to further discuss more details.
